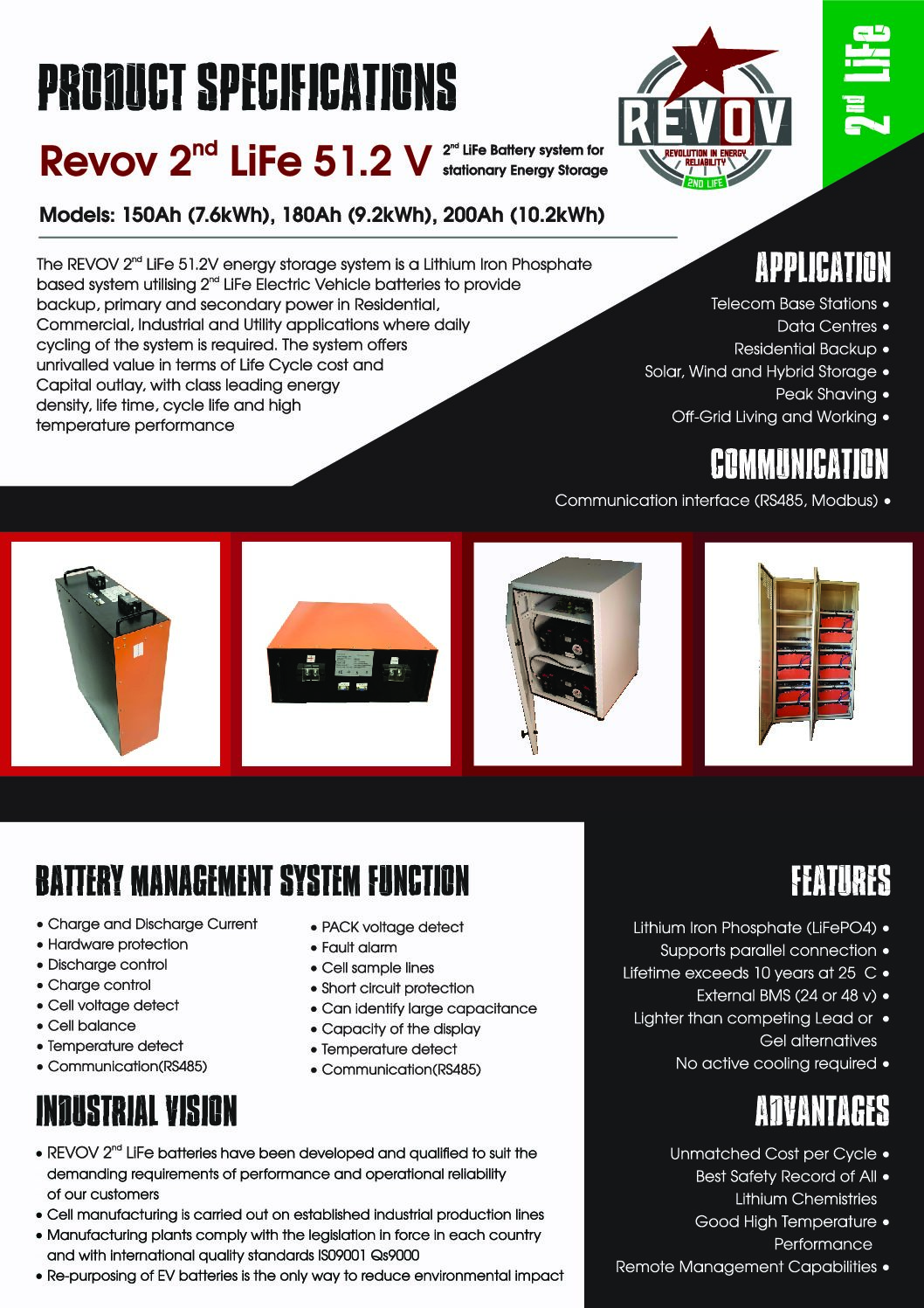

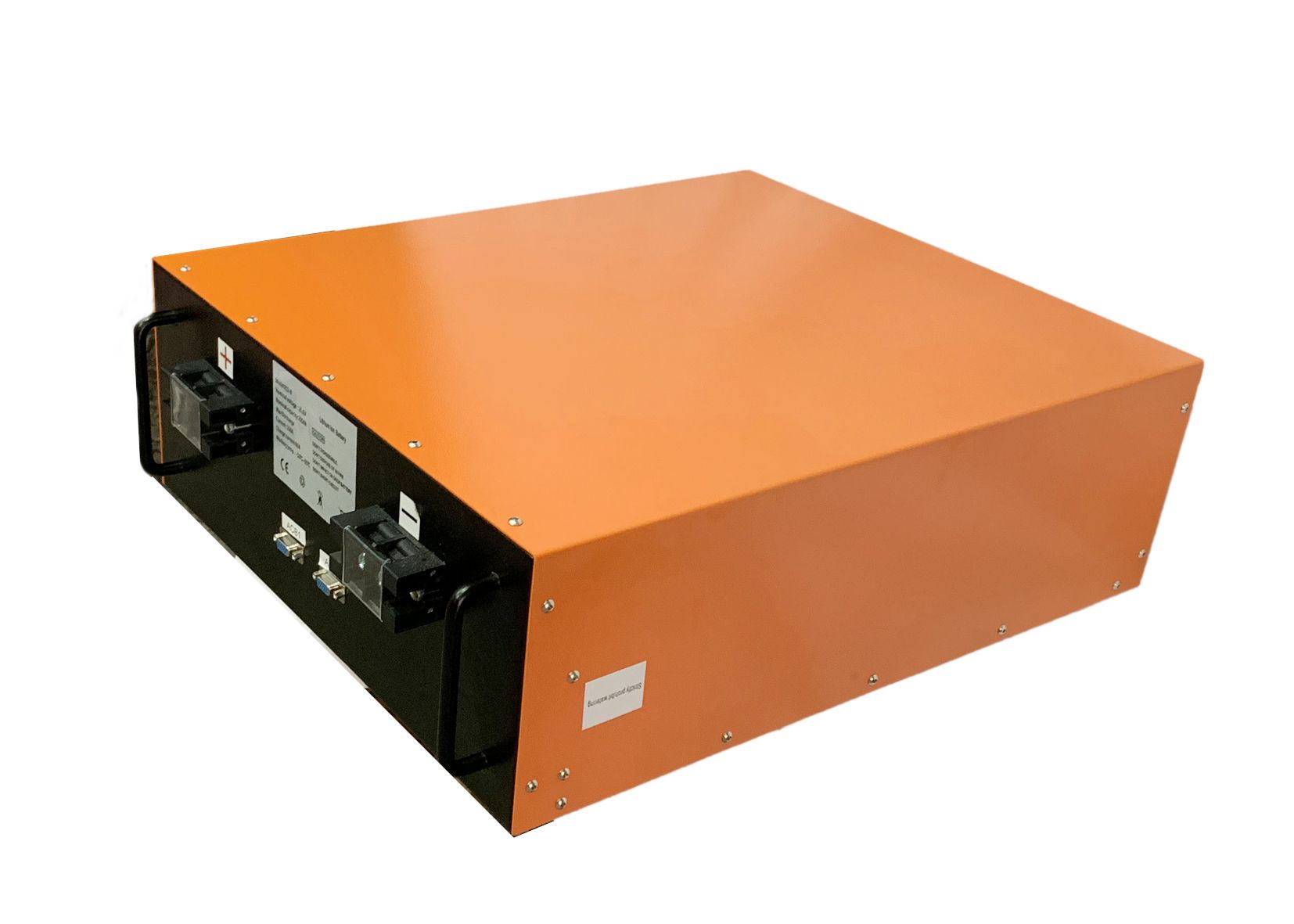

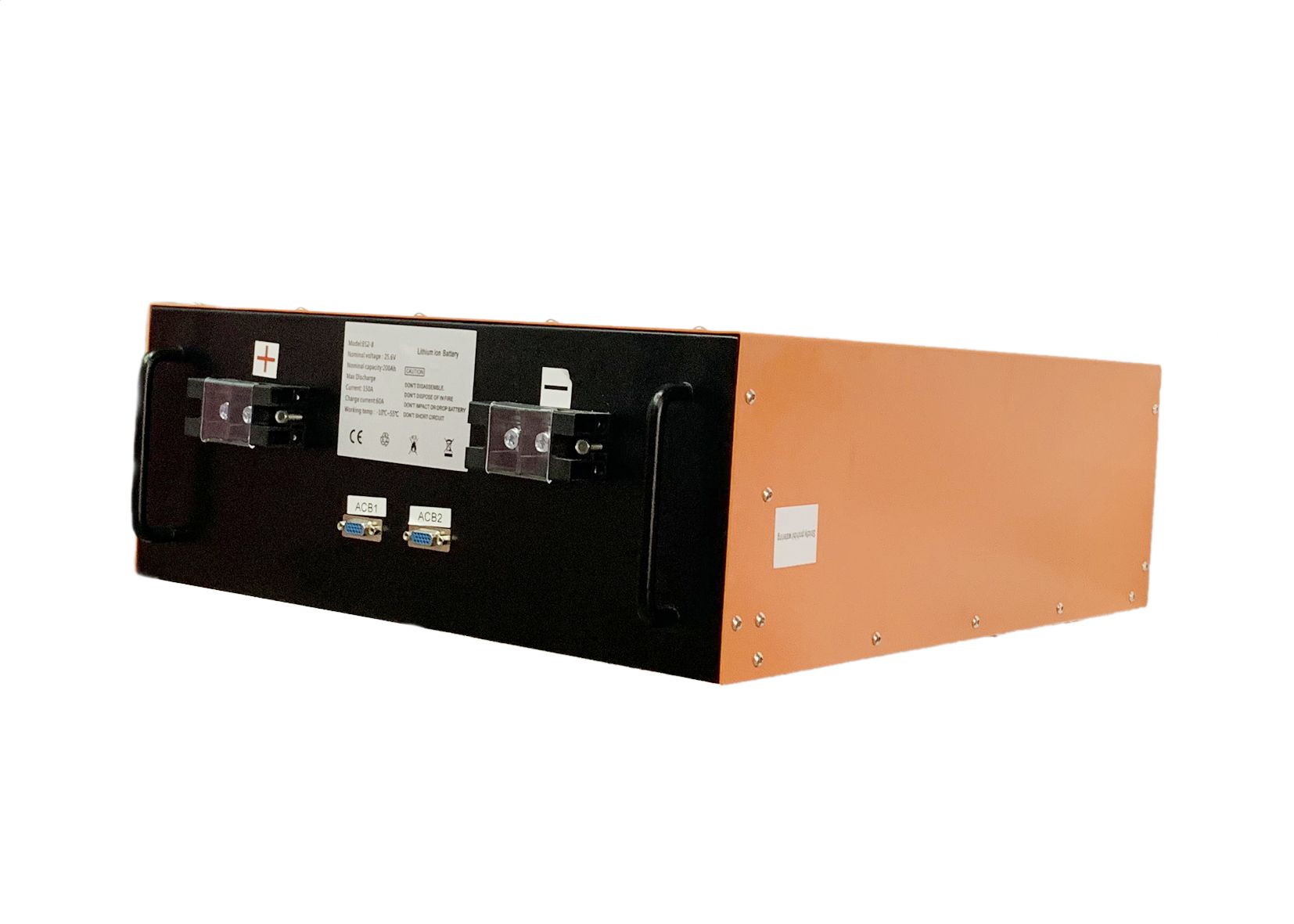

REVOV 2nd LiFe 200Ah 10.2kWh LiFePO4 Battery

Description

Description

Battery Management System Function

•    Cell and battery voltage detection.
•    RS485 communication interface.
•    Battery charge and discharge control (MOSFET).
•    Cell, ambient and MOSFET temperature detection.
•    Display of the Battery capacity and number of cycles.
•    Cells balancing – Equalization of single cells intelligently.
•   Watchdog protection for circuits to ensure safe operation.

Nominal Specifications

• Nominal Voltage 51.2 (25.6V x 2)
  Capacity (C/2) 200Ah
  Energy (C/2) 10.24Wh
  Maintenance Charge the battery every
  6 months when in storage

Electrical Specifications

• Voltage window [V]: 40 – 60.
• Float Charge Voltage [V]: 54.4.
• Boost Charge Voltage [V]: 55.5.
• Bulk Charge Voltage[V]: 54.4.
• Battery Disconnect[V]: 54.4.
• Recharge Time (Hours): 2 @ 0.5°C
• Nominal Voltage: 51.2.

Operating Conditions

• Designed Cycle Life + 25oC 7000+ cycles
  Operating Temperature Charge: Zero / 45oC
  Discharge: -20oC / 60oC
  Transport Regulation Compliance :UN3480
  Storage Temperature
  Short Term Storage: -10oC~+45oC
  (<3 months, SOC:
  20%~60%)
  Long Term Storage: -10oC~+40oC
  EMC Standard Compliance: EN 61000 chapter 4.2, 4.3, 4.5, 4.6/EN55022
  Certificate TUV SUD/CE UL1642/

Mechanical Specifications
BMS

• BMS Weight: 3.6kg

Battery

• Battery Size: Length x Width x Height 520mm x 442mm x 170mm
• Battery Weight: 53kg

Each BMS must have a dedicated fuse (125A) to protect the system
